Low-carbon steel wire is normal quality wire, and it is called general purpose wire. Steel wire is usually well holds its shape, but this is a heavy metal, and bend it easily. Often used for a variety of frameworks.
Wire Size: 0.2mm-8.0mm
Tensile Strength:290-800Mpa
Zinc Coating:12-600g/m²
Packing: Spool, Coil
Standard: BS EN 10257-1, BS EN 10244-2.
Application: Armoured cable, agriculture, fence, wire rope, balling and so on.

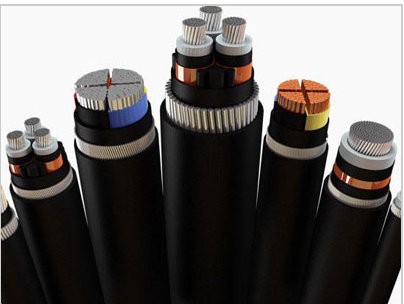

used for armouring cable
used for cable shielding

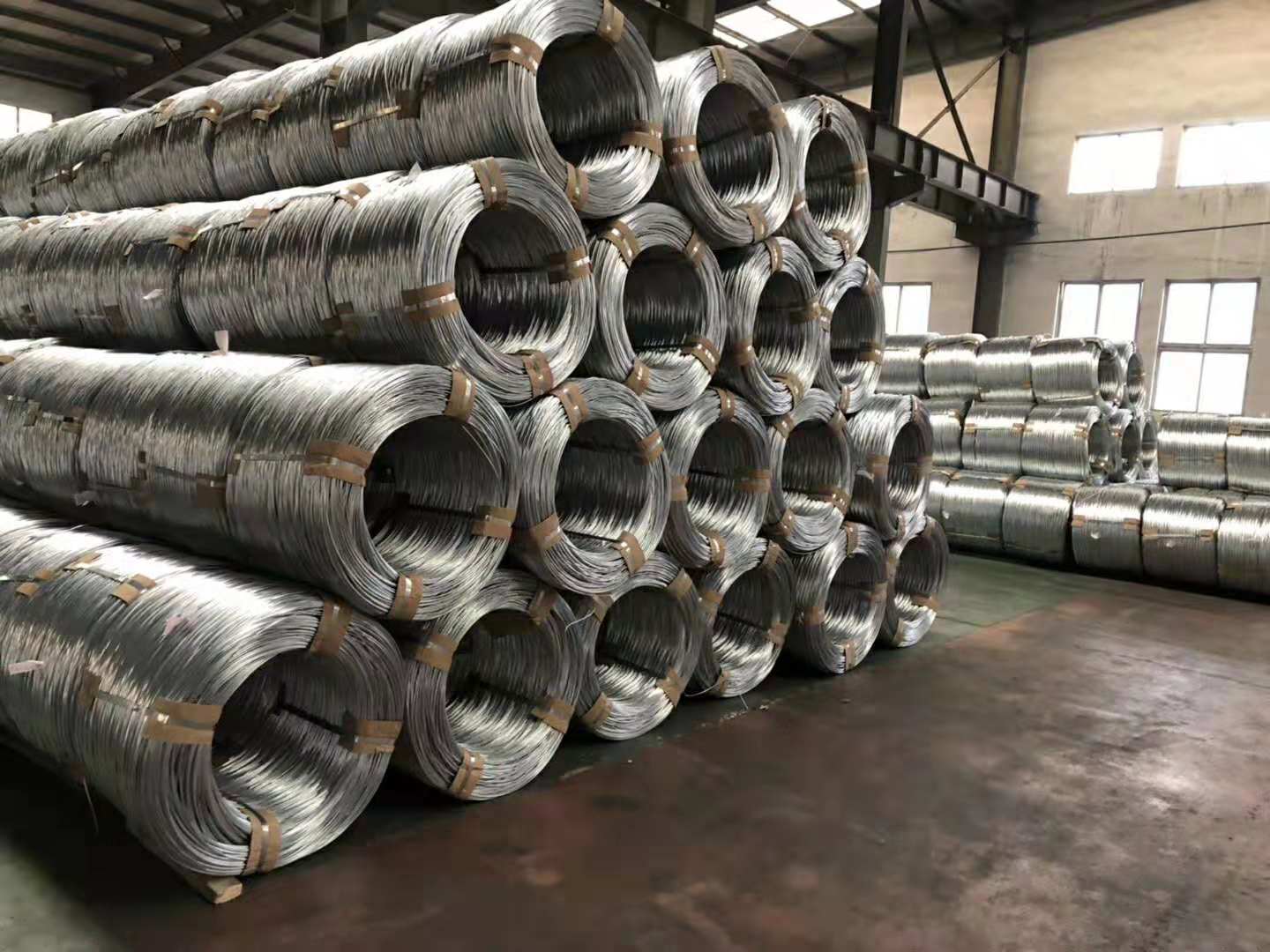

spooled wire

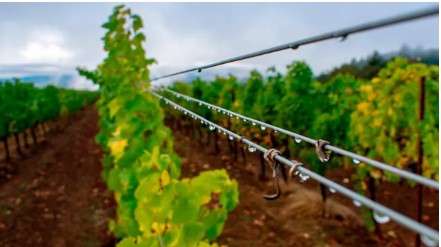

used for agriculture
electro galvanized wire

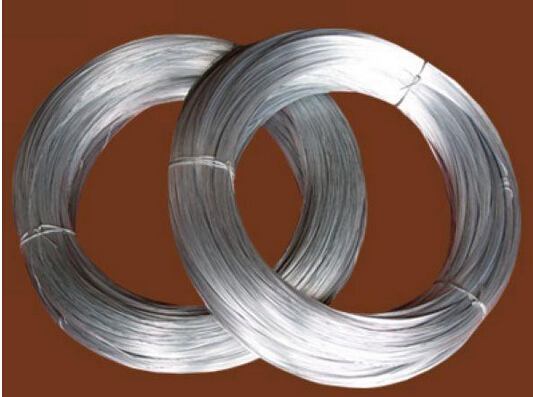

hot dipped galvanized wire
PVC coated wire
used for balling

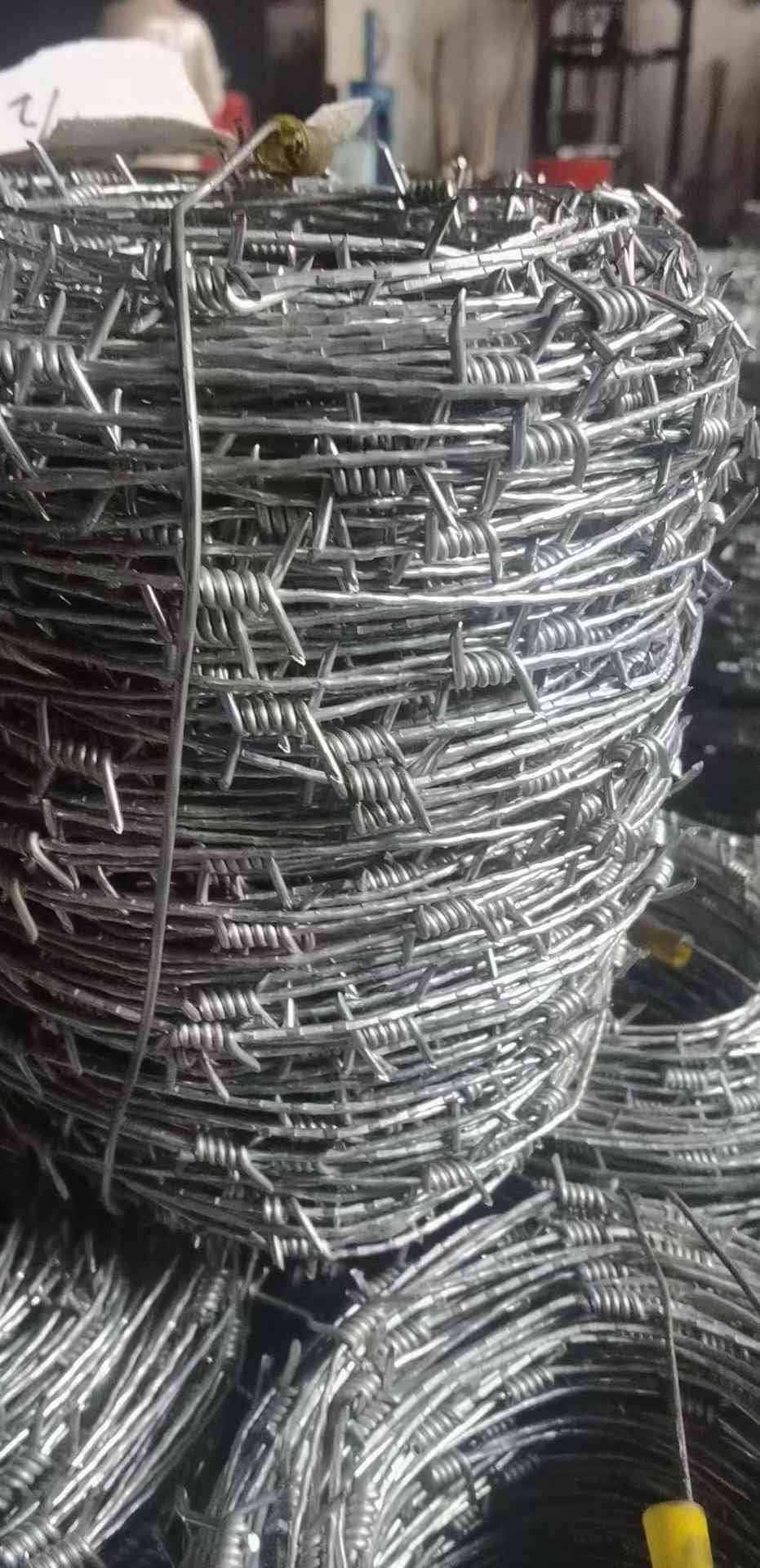

barbed wire
used for fence/ mesh/ netting
|
DIA |
Tolerance |
Tensile Strength (N/mm2) |
Min NO. Of turns |
Maximum resistance |
Zinc coating |
|
0.30mm |
+/-0.025mm |
320-500 |
45 turns |
1952.30 ohm/km |
45g/m2 |
|
0.45mm |
+/-0.025mm |
320-500 |
45 turns |
867.69 ohm/km |
85g/m2 |
|
0.71mm |
+/-0.030mm |
340-500 |
42 turns |
348.56 ohm/km |
130g/m2 |
|
0.9mm |
+/-0.035mm |
340-500 |
33 turns |
216.92 ohm/km |
155g/m2 |
|
1.25mm |
+/-0.04mm |
340-500 |
24 turns |
112.45 ohm/km |
180g/m2 |
|
1.60mm |
+/-0.045mm |
340-500 |
37 turns |
68.64 ohm/km |
195g/m2 |
|
2.00mm |
+/-0.05mm |
340-500 |
30 turns |
43.93 ohm/km |
215g/m2 |
|
2.5mm |
+/-0.06mm |
340-500 |
24 turns |
28.11 ohm/km |
245g/m2 |
|
3.15mm |
+/-0.07mm |
340-500 |
19 turns |
17.71 ohm/km |
260g/m2 |
|
4.00mm |
+/-0.07mm |
340-500 |
15 turns |
10.98 ohm/km |
275g/m2 |
