Aluminum clad steel wire, commonly abbreviated as AW or AS or AC, is an electrical conductor composed of an inner steel core and outer Aluminum cladding.
Aluminum clad steel strand is made of an aluminum clad steel wire core stranded with one or more layers of single aluminum clad steel wire in spiral. Opposite stranding direction between neighboring layers provides higher mechanical strength and corrosion resistance.

Wire Size: 1.24mm-4.8mm

Conductivity: IACS 14%, 20.3%, 23%, 27%, 30%, 35%, 40%

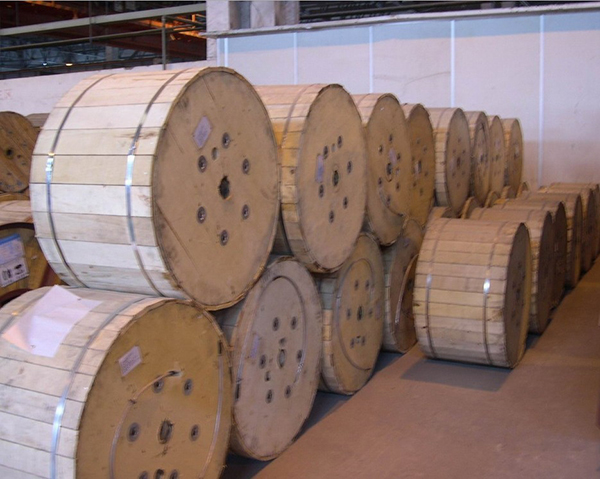

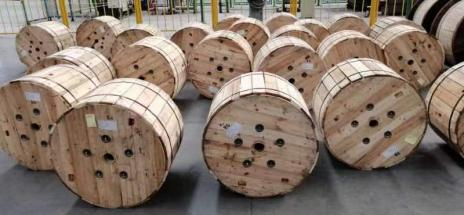

Packing: By drum

Standard: ASTM B415, ASTM B416, ASTM B502, ASTM B500, BS EN 50540, IEC61232

We can also produce as per clients' request.

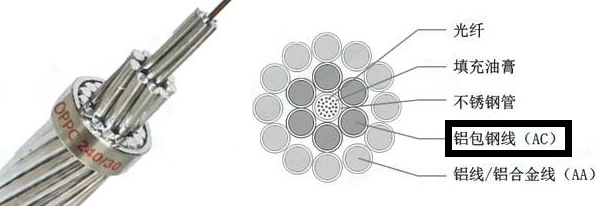

Application: Apply with intensify reinforced, and twist ACS, optical fiber ground wire(OPGW), over head electrical conductors, extra high voltage overhead, spon transmit electricity, ect,.
