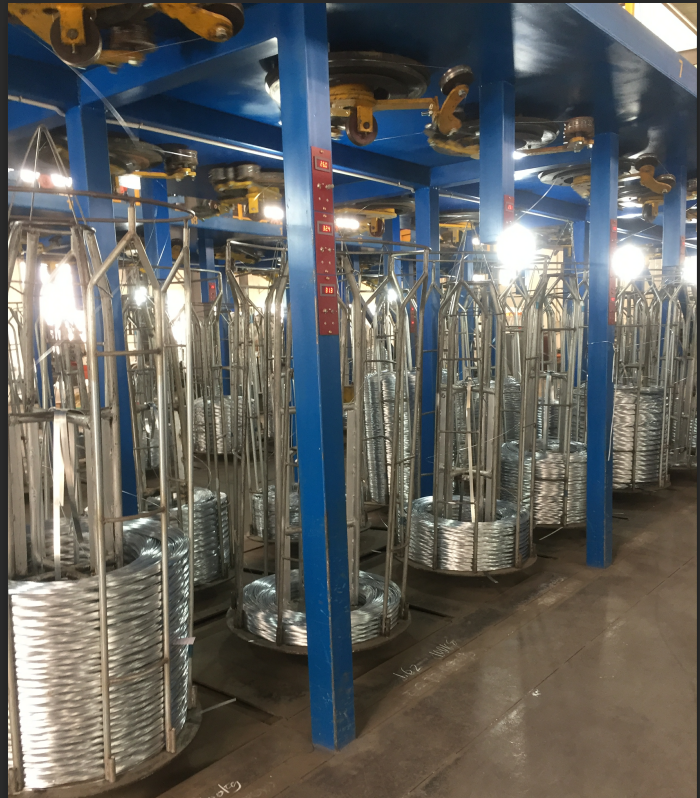

High carbon steel wire is popularly known as black wire. It is a drawn steel wire which is manufactured from quality wire rods with high carbon content. With a wide range of usage, black wire plays a vital role in many industries from automobile and construction to engineering industries. At Belon Metal, we manufacture high carbon steel wire in our state-of-the-art plants and employ world-class patented heat treatment processes.
Wire Size: 1.2-5.0mm
Zinc Coating: 210-900g/m²
Tensile Strength: 1300-1960mpa
Packing: Drum, Coil, Z2, Z3
Standard: ASTM B498, BS EN 50189, IEC 60888, BS 4565.
Application: ACSR core wire, Optical cable, Electric fence, Agriculture, Guy wire, Stay wire, Earth wire, Messenger wire, Ground wire, Automotive and transport steel wire, Guy Grip.

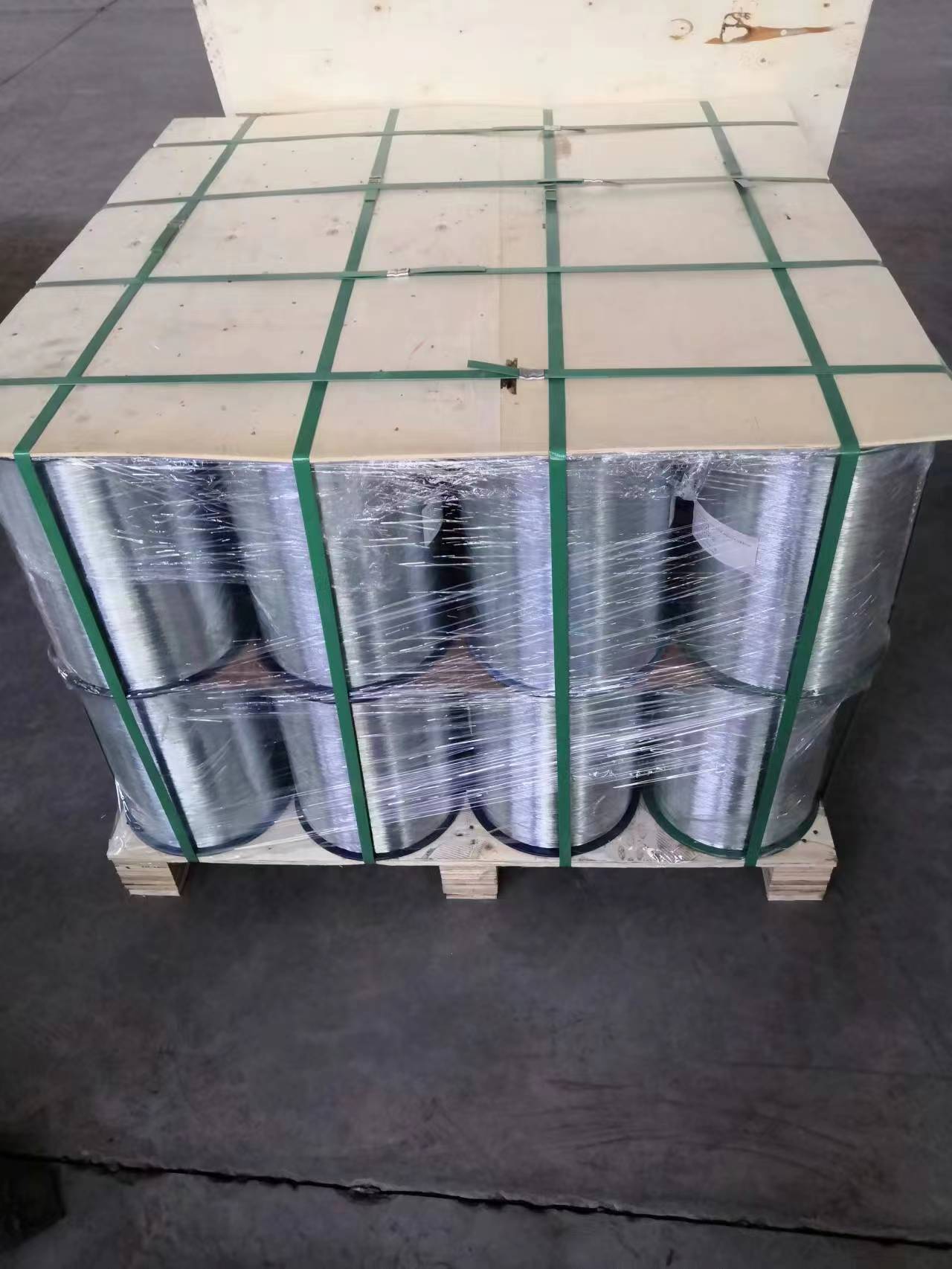

wire by spool
small coil wire
0.45mm galvanized steel wire for optical cable
Used for ACSR

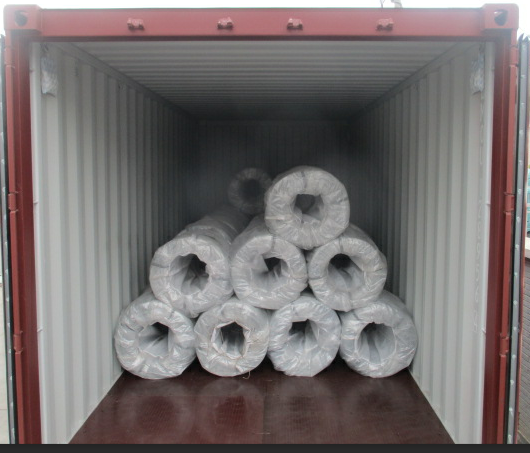

Z2 coil
0.45mm
used for optical cable
galvanized steel wire
Z2 coil

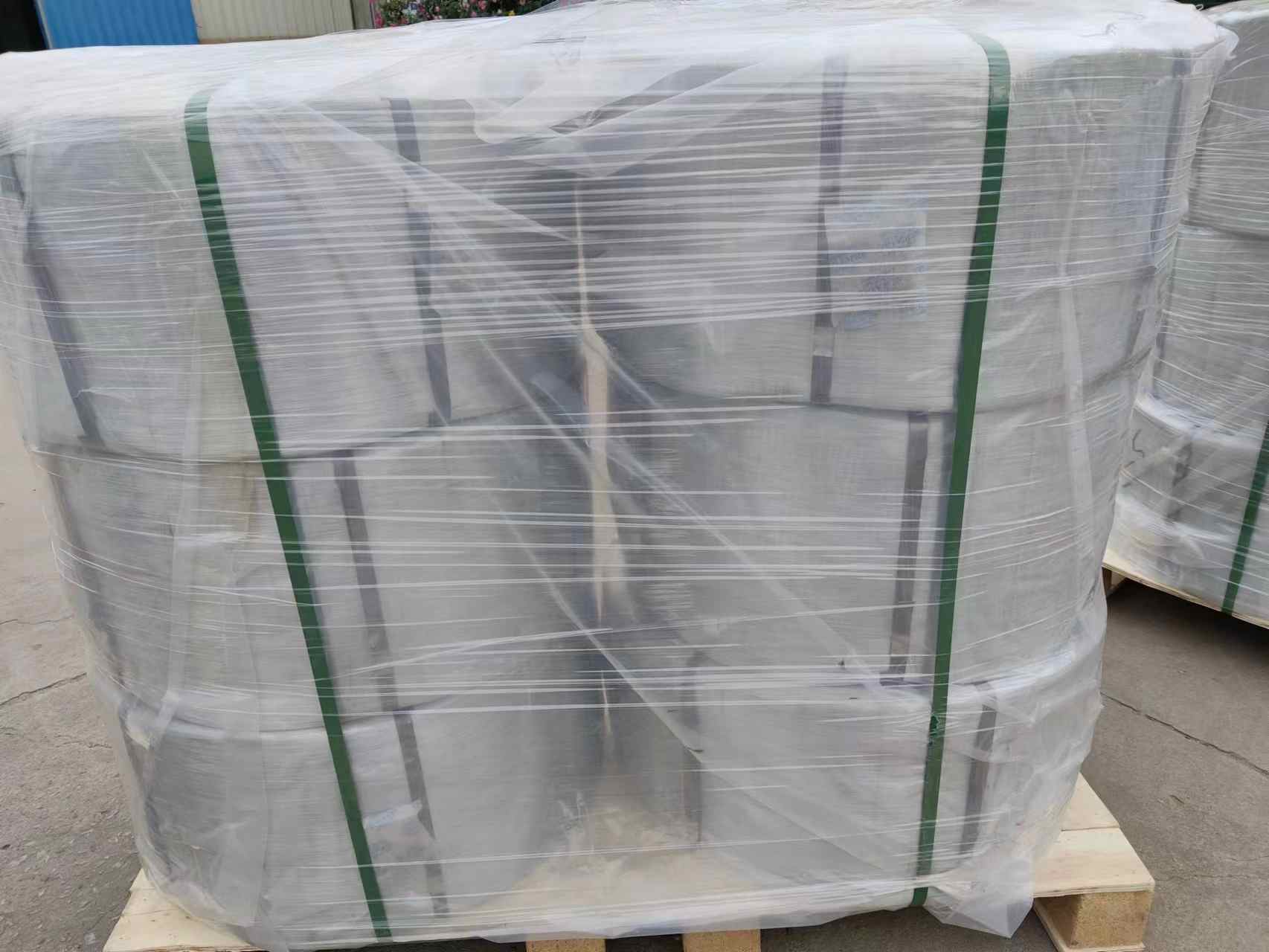

Packed by spool or coil

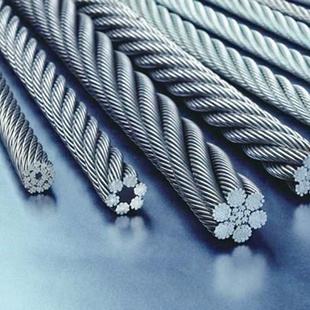

patented wire for wire rope
redraw wire for stiching
ASTM B498:
|
Number of Wires in Strand |
Nominal Diameter of Coated Wires in Strand (mm) |
Minimum Breaking Strength of Strand(KN) |
||||||
|
Utilities Grade |
Common Grade |
Siemens-Martin Grade |
High-Strength Grade |
Extra High-Strength Grade |
||||
|
1/8 |
(3.18) |
7 |
1.04 |
--- |
2.402 |
4.048 |
5.916 |
8.140 |
|
5/32 |
(3.97) |
7 |
1.32 |
--- |
3.870 |
6.539 |
9.519 |
13.078 |
|
3/16 |
(4.76) |
7 |
1.57 |
--- |
5.115 |
8.452 |
12.677 |
17.748 |
|
3/16 |
(4.76) |
7 |
1.65 |
10.676(1) |
--- |
--- |
--- |
--- |
|
7/32 |
(5.56) |
3 |
2.64 |
--- |
6.228 |
10.409 |
15.569 |
21.796 |
|
7/32 |
(5.56) |
7 |
1.83 |
--- |
6.850 |
11.387 |
17.126 |
24.020 |
|
1/4 |
(6.35) |
3 |
3.05 |
14.012(2) |
8.274 |
13.523 |
21.040 |
29.981 |
|
1/4 |
(6.35) |
3 |
3.05 |
20.017(3) |
--- |
--- |
--- |
--- |
|
1/4 |
(6.35) |
7 |
2.03 |
--- |
8.452 |
14.012 |
21.129 |
29.581 |
|
9/32 |
(7.14) |
3 |
3.30 |
--- |
9.252 |
15.035 |
23.398 |
33.362 |
|
9/32 |
(7.14) |
7 |
2.36 |
20.462(1) |
11.432 |
18.905 |
28.469 |
39.812 |
|
5/16 |
(7.94) |
3 |
3.68 |
28.913(3) |
11.076 |
18.193 |
28.246 |
40.479 |
|
5/16 |
(7.94) |
7 |
2.64 |
--- |
14.234 |
23.798 |
35.586 |
49.820 |
|
5/16 |
(7.94) |
7 |
2.77 |
26.689(1) |
--- |
--- |
--- |
--- |
|
3/8 |
(9.52) |
3 |
4.19 |
37.810(3) |
14.813 |
24.732 |
37.187 |
52.489 |
|
3/8 |
(9.52) |
7 |
3.05 |
51.155(4) |
18.905 |
30.915 |
48.040 |
68.503 |
|
7/16 |
(11.11) |
7 |
3.68 |
80.068(4) |
25.355 |
41.591 |
64.499 |
92.523 |
|
1/2 |
(12.70) |
7 |
4.19 |
111.206(4) |
32.917 |
53.823 |
83.627 |
119.657 |
