Galvanized steel strands, also called galvanized stranded wires, which are twisted together by several galvanized steel wires. Among different steel wire strands, 1×7, 1×19, 7×0.7mm, 7×0.33mm galvanized stranded wire are the most popular. Because they are made by means of wire drawing followed by hot-dipped galvanizing or electrical galvanizing, the surface of the strands has a layer of zinc. Therefore, the strands have extremely excellent nature, such as excellent abrasion resistance, high tensile strength and corrosion resistance.
Strand Size: 1.0mm-13.5mm
Structure: 1×3, 1×7, 1×19
Tensile Strength: 700-1960Mpa
Zinc Coating:210-900g/m²
Packing: Drum, Coil, Z2, Z3
Standard: ASTM B498, ASTM A475, ASTM A363, BS EN 183.
Application:ACSR core wire,AACSR, Optical cable, Guy wire, Stay wire, Earth wire, Messenger wire, Ground wire.

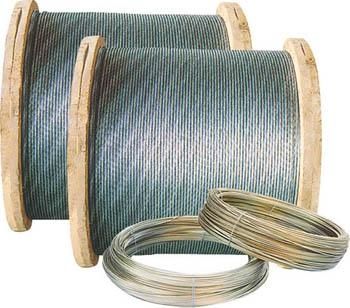

7/1.0mm galv steel strand
7/0.33 galvanized steel strand

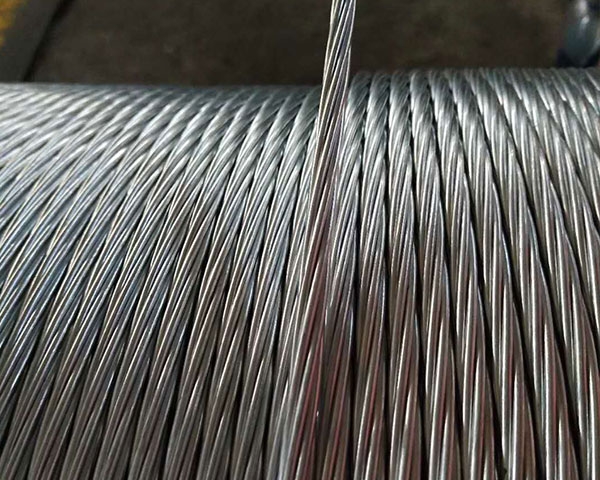

coiled strand
steel strand

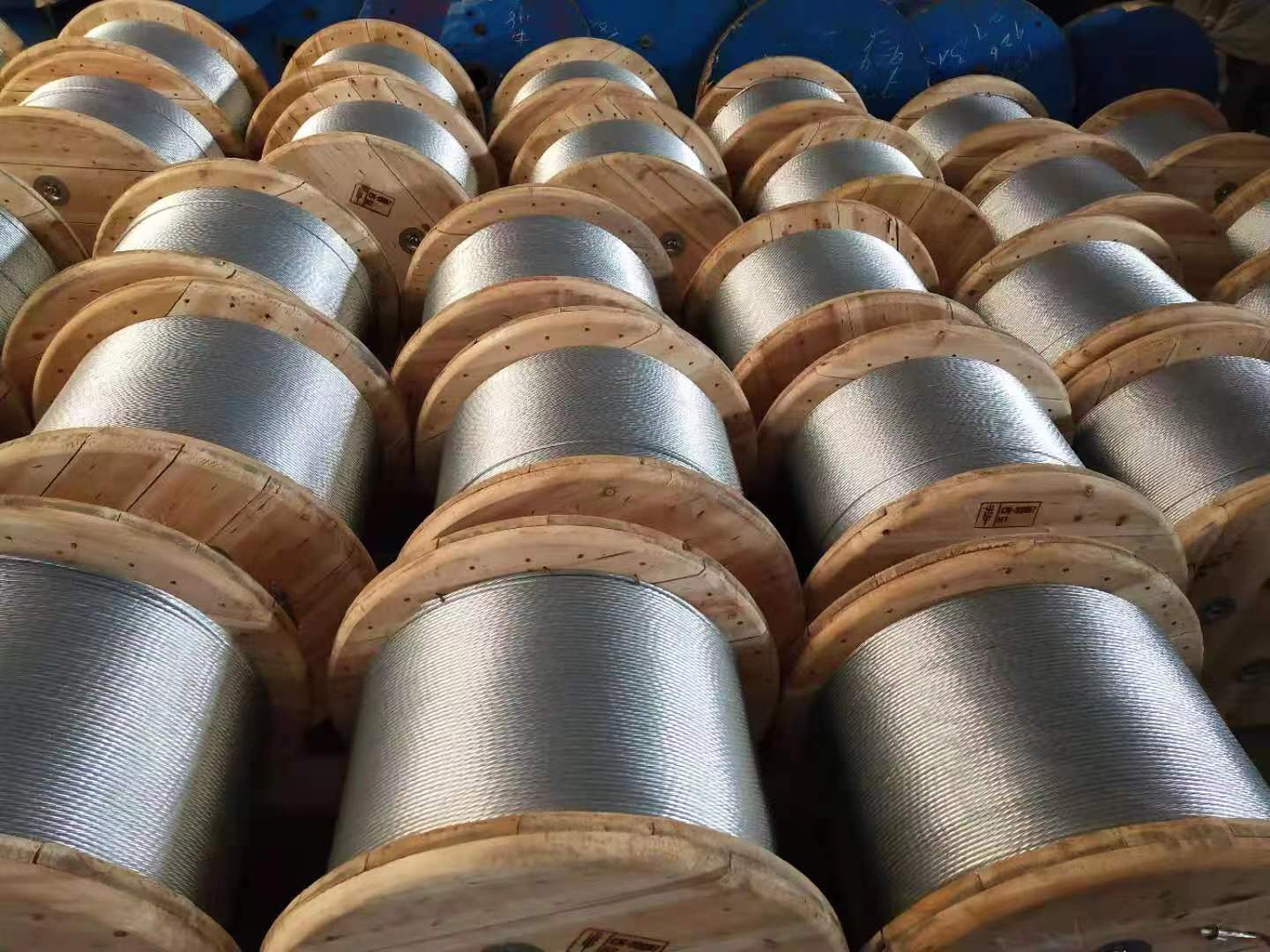

galvanized steel strand

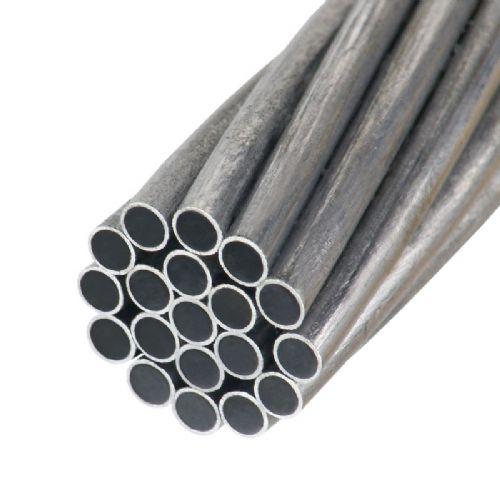

1/19 steel strand
1/7 strand

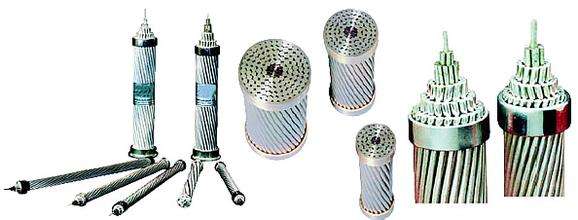

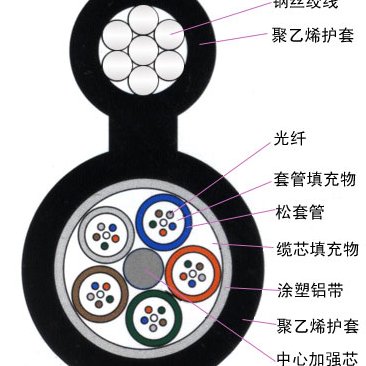

wide application
wide application
wide application
wide application
wide application
PC strand
ASTM A475:
Number of Wires in Strand
Nominal Diameter of Coated Wires in Strand (mm)
Minimum Breaking Strength of Strand(KN)
Utilities Grade
Common Grade
Siemens-Martin Grade
High-Strength Grade
Extra High-Strength Grade
1/8
(3.18)
7
1.04
---
2.402
4.048
5.916
8.140
5/32
(3.97)
7
1.32
---
3.870
6.539
9.519
13.078
3/16
(4.76)
7
1.57
---
5.115
8.452
12.677
17.748
3/16
(4.76)
7
1.65
10.676(1)
---
---
---
---
7/32
(5.56)
3
2.64
---
6.228
10.409
15.569
21.796
7/32
(5.56)
7
1.83
---
6.850
11.387
17.126
24.020
1/4
(6.35)
3
3.05
14.012(2)
8.274
13.523
21.040
29.981
1/4
(6.35)
3
3.05
20.017(3)
---
---
---
---
1/4
(6.35)
7
2.03
---
8.452
14.012
21.129
29.581
9/32
(7.14)
3
3.30
---
9.252
15.035
23.398
33.362
9/32
(7.14)
7
2.36
20.462(1)
11.432
18.905
28.469
39.812
5/16
(7.94)
3
3.68
28.913(3)
11.076
18.193
28.246
40.479
5/16
(7.94)
7
2.64
---
14.234
23.798
35.586
49.820
5/16
(7.94)
7
2.77
26.689(1)
---
---
---
---
3/8
(9.52)
3
4.19
37.810(3)
14.813
24.732
37.187
52.489
3/8
(9.52)
7
3.05
51.155(4)
18.905
30.915
48.040
68.503
7/16
(11.11)
7
3.68
80.068(4)
25.355
41.591
64.499
92.523
1/2
(12.70)
7
4.19
111.206(4)
32.917
53.823
83.627
119.657
